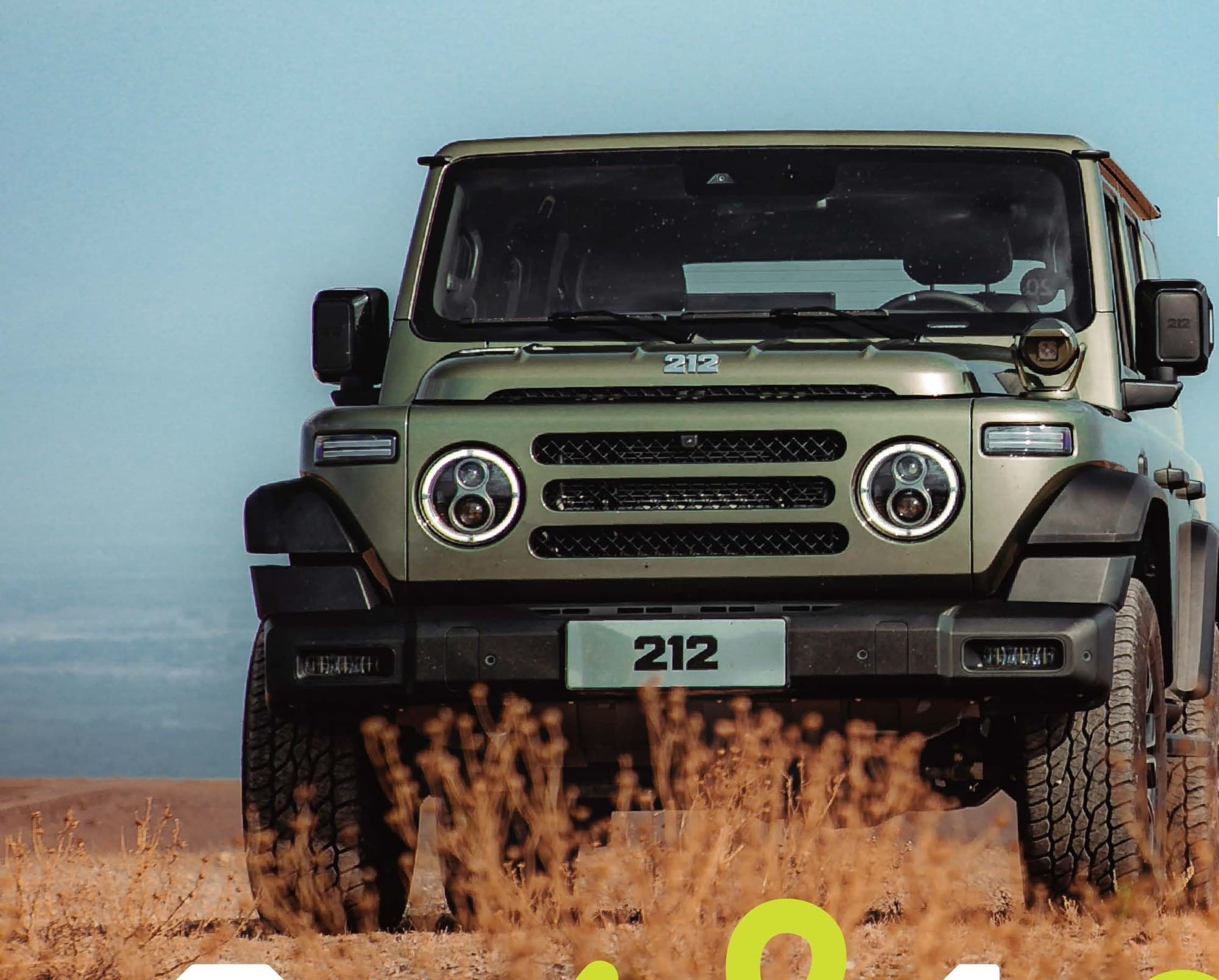

212 T01
Diesel
2.0T
The one that goes deeper.
- 170 hp
- power
- 415 Nm
- torque
- 850 mm
- wading
- 100%
- grade
What it is.
What it isn’t.
Tower-style body. High waistline. A tiger-inspired fascia that stares straight down the track. The 212 Diesel is not a soft-roader with a lift kit, it is a body-on-frame 4x4 with live axles at both ends and 850mm of wading depth.
The 2.0T diesel pairs 415Nm with a ZF eight-speed automatic and BorgWarner part-time four-wheel drive. Inside, leather seats, a 12.3-inch touchscreen and a 10.25-inch cluster keep the toughness civilised.
Off-road geometry
Measured, not marketed.
- 235mm
- Ground clearance
- 850mm
- Wading depth
- 100%
- Max gradient
Technical specification
212 T01 Diesel
Powertrain
- Engine
- 2.0T turbo diesel
- Max power
- 125 kW / 170 hp
- Max torque
- 415 Nm
- Gearbox
- ZF 8-speed automatic
- Drive
- Part-time 4WD, low range
- Differential locks
- Front & rear (electronic)
- Fuel tank
- 80 L
Off-road geometry
- Approach angle
- 40°
- Departure angle
- 36°
- Ramp breakover
- 23.6°
- Ground clearance
- 235 mm
- Wading depth
- 850 mm
- Max gradient
- 100%
Chassis
- Construction
- Body-on-frame
- Front suspension
- 5-link rigid axle
- Rear suspension
- 5-link rigid axle
- Brakes
- Ventilated discs
- Tyres
- 265/70 R17 HT (AT optional)
- Kerb weight
- 2,235 kg
Dimensions
- Body
- 5 doors, 5 seats
- Length
- 4,705 mm
- Width
- 1,895 mm
- Height
- 1,936 mm
- Wheelbase
- 2,860 mm
- Track (front / rear)
- 1,598 / 1,598 mm
Cabin & tech
- Seats
- Leather, heated, ventilated front
- Instrument cluster
- 10.25-inch LCD
- Touchscreen
- 12.3-inch
- Drive modes
- Standard, Economy, Sport, Snow, Sand, Mud, Rock, Wade, Mountain
- Driver assistance
- Surround-view monitor, cruise control
- Charging
- 50W wireless
